Spring源码分析(一) Beanfactory初始化

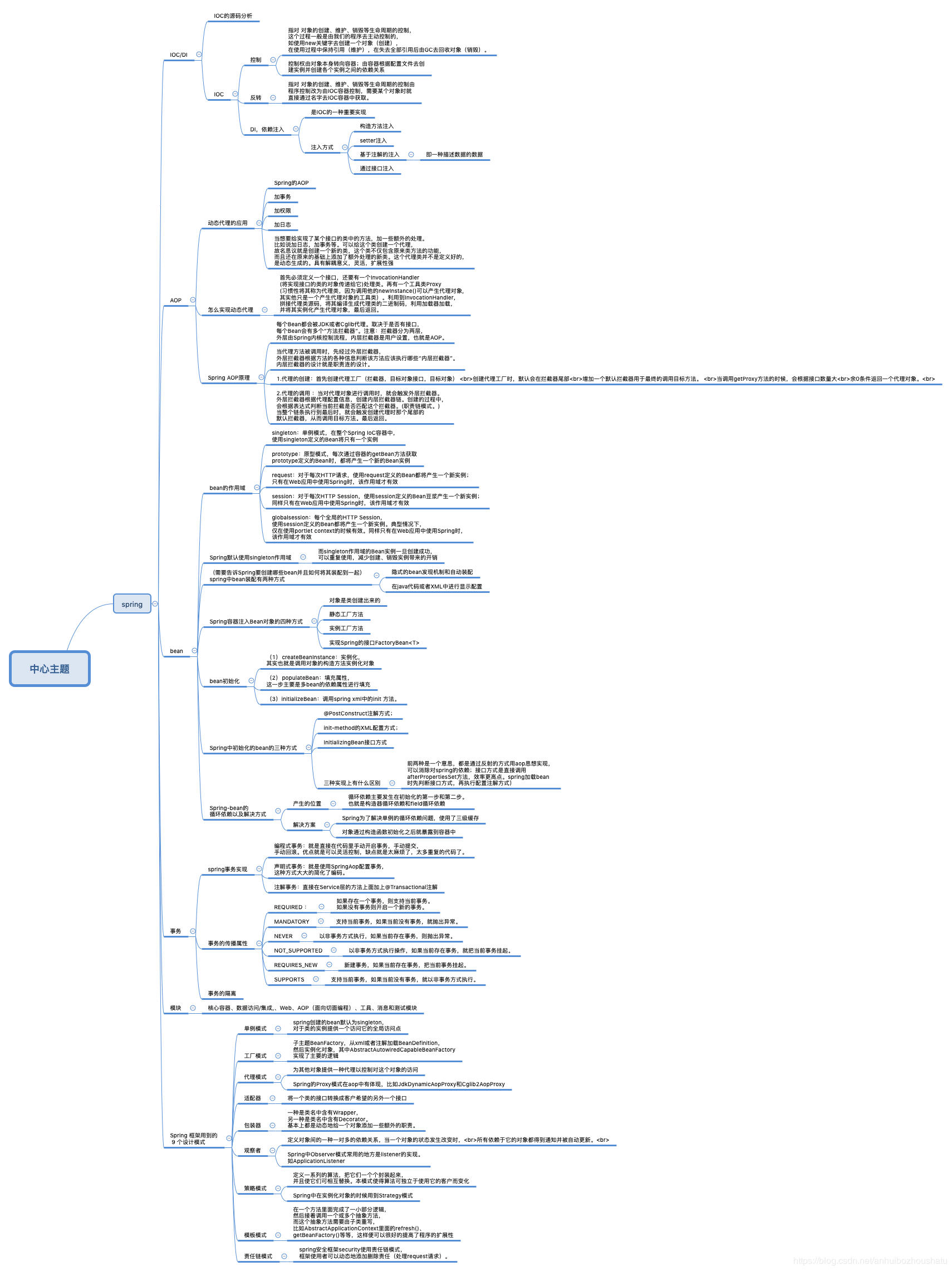

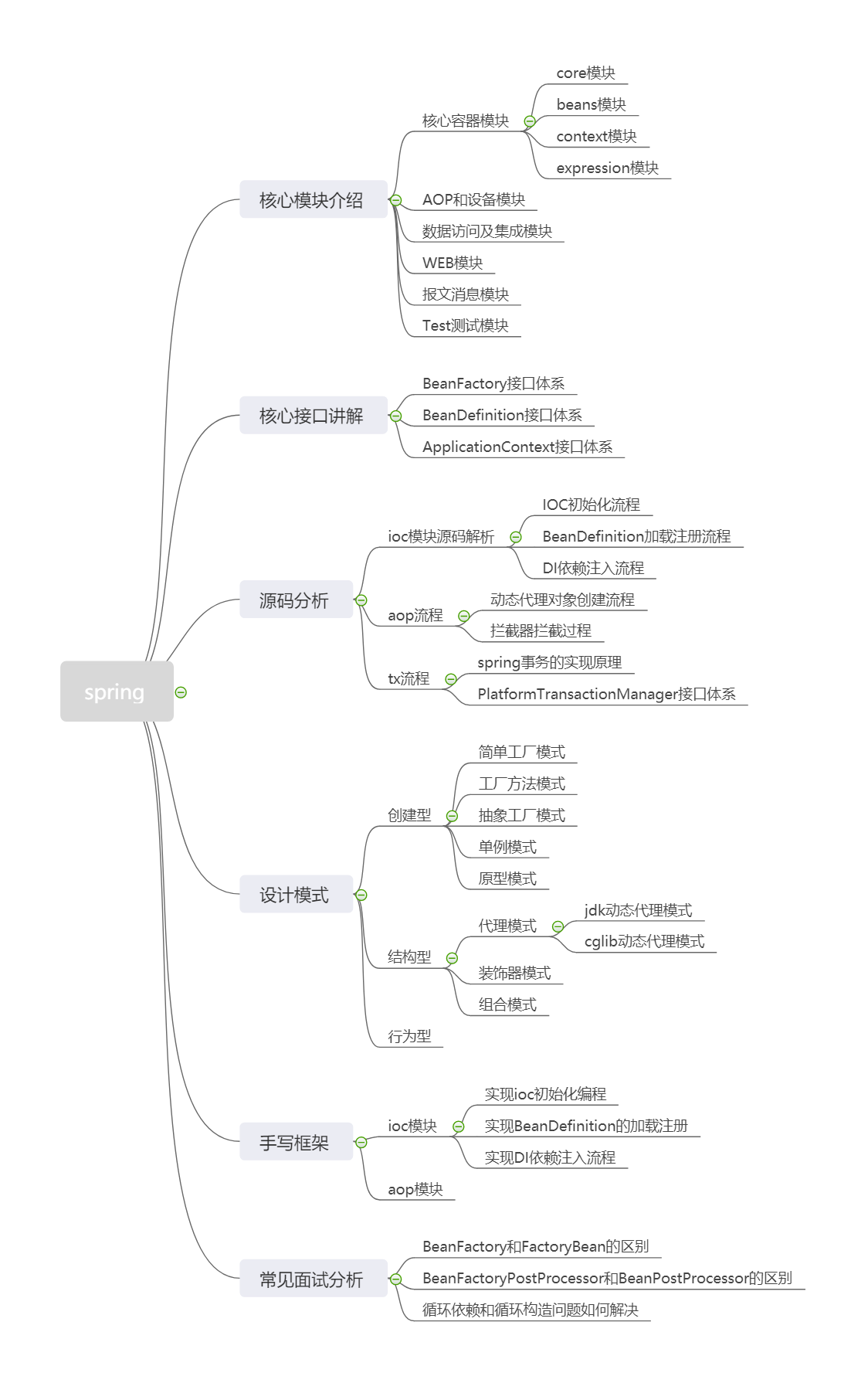

两张图

Spring入口

//1. 创建 Spring 的 IOC 容器
ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");//↓↓↓↓↓

//2. 从 IOC 容器中获取 bean 的实例
 User user = context.getBean("User");

Beanfactory初始化

    //ClassPathXmlApplicationContext.java
    public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
        this(new String[] {configLocation}, true, null);//↓↓↓↓↓
    }

    /**
     *
     * @param configLocations Spring的xml配置文件
     * @param refresh 是否需要刷新，决定了是否进行bean解析、注册及实例化
     * @param parent 父ApplicationContext
     * @throws BeansException
     */
    public ClassPathXmlApplicationContext(
            String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
            throws BeansException {

        super(parent);
        setConfigLocations(configLocations);
        if (refresh) {
            refresh();//↓↓↓↓↓
        }
    }

    //AbstractApplicationContext.java
    public void refresh() throws BeansException, IllegalStateException {
        synchronized (this.startupShutdownMonitor) {
            // 容器预先准备，记录容器启动时间和标记
            prepareRefresh();

            // 获取Beanfactory，并且初始化Beanfactory内容，包括了定位、加载和注册过程
            ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

            // 为BeanFactory配置某些使用到的工具类，类加载器、事件处理器等
            prepareBeanFactory(beanFactory);

            try {
                // 为容器的某些子类指定特殊的BeanPost事件处理器
                postProcessBeanFactory(beanFactory);

                // 调用所有注册的BeanFactoryPostProcessor的postProcessBeanFactory方法
                invokeBeanFactoryPostProcessors(beanFactory);

                // 注册BeanPostProcessor的实例bean到Beanfactory，在实例化Bean时会调用BeanPostProcessor的两个方法
                registerBeanPostProcessors(beanFactory);

                //初始化信息源
                initMessageSource();

                 // 初始化容器事件广播器
                initApplicationEventMulticaster();

                //调用子类的某些特殊Bean初始化方法
                onRefresh();

                 // 注册监听器
                registerListeners();

                //根据Beandefinition实例化所有非延时加载的Bean
                finishBeanFactoryInitialization(beanFactory);

                // 并发布容器的生命周期事件
                finishRefresh();
            }

            catch (BeansException ex) {
                if (logger.isWarnEnabled()) {
                    logger.warn("Exception encountered during context initialization - " +
                            "cancelling refresh attempt: " + ex);
                }

                // Destroy already created singletons to avoid dangling resources.
                destroyBeans();

                // Reset 'active' flag.
                cancelRefresh(ex);

                // Propagate exception to caller.
                throw ex;
            }

            finally {
                // Reset common introspection caches in Spring's core, since we
                // might not ever need metadata for singleton beans anymore...
                resetCommonCaches();
            }
        }
    }

## 定位

    //AbstractApplicationContext.java
    protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
        refreshBeanFactory();//↓↓↓↓↓
        return getBeanFactory();
    }

    //AbstractRefreshableApplicationContext.java
    protected final void refreshBeanFactory() throws BeansException {
        if (hasBeanFactory()) {
            //如果已经存在了Beanfactory，就销毁已经存在的Beanfactory
            destroyBeans();
            closeBeanFactory();
        }
        try {
            //新建一个Beanfactory
            DefaultListableBeanFactory beanFactory = createBeanFactory();
            beanFactory.setSerializationId(getId());
            customizeBeanFactory(beanFactory);
            //定位、加载、注册BeanDefinition
            loadBeanDefinitions(beanFactory);//↓↓↓↓↓
            synchronized (this.beanFactoryMonitor) {
                this.beanFactory = beanFactory;
            }
        }
        catch (IOException ex) {
            throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
        }
    }

//AbstractXmlApplicationContext.java
//我们的例子是基于xml配置的，因此使用AbstractXmlApplicationContext进行loadBeanDefinitions
//假如我们是使用注解配置，那么就是使用AnnotationConfigWebApplicationContext#loadBeanDefinitions的操作了
    protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
        // xml配置为例，新建解析配置文件的解析器
        XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

        //设置解析器的必要信息
        beanDefinitionReader.setEnvironment(this.getEnvironment());
        beanDefinitionReader.setResourceLoader(this);
        beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

        initBeanDefinitionReader(beanDefinitionReader);
        //使用解析器进行加载、然后进行注册
        loadBeanDefinitions(beanDefinitionReader);//↓↓↓↓↓
    }

    protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
        //获取一开始配置的资源信息
        Resource[] configResources = getConfigResources();
        if (configResources != null) {
            //根据资源路径最终定位，到此定位可以认定完成，接下来是根据配置进行加载
            reader.loadBeanDefinitions(configResources);
        }
        String[] configLocations = getConfigLocations();
        if (configLocations != null) {
            reader.loadBeanDefinitions(configLocations);//↓↓↓↓↓
        }
    }

加载

    //XmlBeanDefinitionReader.java
    public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
        Assert.notNull(encodedResource, "EncodedResource must not be null");
        if (logger.isTraceEnabled()) {
            logger.trace("Loading XML bean definitions from " + encodedResource);
        }

        Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
        if (currentResources == null) {
            currentResources = new HashSet<>(4);
            this.resourcesCurrentlyBeingLoaded.set(currentResources);
        }
        if (!currentResources.add(encodedResource)) {
            throw new BeanDefinitionStoreException(
                    "Detected cyclic loading of " + encodedResource + " - check your import definitions!");
        }
        try {
            // 将资源文件转为 InputStream 的 IO 流
            InputStream inputStream = encodedResource.getResource().getInputStream();
            try {
                // 从 InputStream 中得到 XML 的解析源
                InputSource inputSource = new InputSource(inputStream);
                if (encodedResource.getEncoding() != null) {
                    inputSource.setEncoding(encodedResource.getEncoding());
                }
                // ... 具体的读取过程
                return doLoadBeanDefinitions(inputSource, encodedResource.getResource());//↓↓↓↓↓
            }
            finally {
                inputStream.close();
            }
        }
        catch (IOException ex) {
            throw new BeanDefinitionStoreException(
                    "IOException parsing XML document from " + encodedResource.getResource(), ex);
        }
        finally {
            currentResources.remove(encodedResource);
            if (currentResources.isEmpty()) {
                this.resourcesCurrentlyBeingLoaded.remove();
            }
        }
    }

    //XmlBeanDefinitionReader.java
    protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
            throws BeanDefinitionStoreException {

        try {
            // 获取 XML Document 实例
            Document doc = doLoadDocument(inputSource, resource);
            // 根据 Document 实例，注册 Bean 信息
            int count = registerBeanDefinitions(doc, resource);//↓↓↓↓↓
            if (logger.isDebugEnabled()) {
                logger.debug("Loaded " + count + " bean definitions from " + resource);
            }
            return count;
        }
        catch (BeanDefinitionStoreException ex) {
            throw ex;
        }
        catch (SAXParseException ex) {
            throw new XmlBeanDefinitionStoreException(resource.getDescription(),
                    "Line " + ex.getLineNumber() + " in XML document from " + resource + " is invalid", ex);
        }
        catch (SAXException ex) {
            throw new XmlBeanDefinitionStoreException(resource.getDescription(),
                    "XML document from " + resource + " is invalid", ex);
        }
        catch (ParserConfigurationException ex) {
            throw new BeanDefinitionStoreException(resource.getDescription(),
                    "Parser configuration exception parsing XML from " + resource, ex);
        }
        catch (IOException ex) {
            throw new BeanDefinitionStoreException(resource.getDescription(),
                    "IOException parsing XML document from " + resource, ex);
        }
        catch (Throwable ex) {
            throw new BeanDefinitionStoreException(resource.getDescription(),
                    "Unexpected exception parsing XML document from " + resource, ex);
        }
    }

    //XmlBeanDefinitionReader.java
    public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
        // 创建 BeanDefinitionDocumentReader 对象
        BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
        // 获取已注册的 BeanDefinition 数量
        int countBefore = getRegistry().getBeanDefinitionCount();
        // 创建 XmlReaderContext 对象
        // 注册 BeanDefinition
        documentReader.registerBeanDefinitions(doc, createReaderContext(resource));//↓↓↓↓↓
        // 计算新注册的 BeanDefinition 数量
        return getRegistry().getBeanDefinitionCount() - countBefore;
    }

注册

    //DefaultBeanDefinitionDocumentReader.java
    protected void doRegisterBeanDefinitions(Element root) {
        BeanDefinitionParserDelegate parent = this.delegate;
        this.delegate = createDelegate(getReaderContext(), root, parent);

        if (this.delegate.isDefaultNamespace(root)) {
            String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
            if (StringUtils.hasText(profileSpec)) {
                String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
                        profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
                // We cannot use Profiles.of(...) since profile expressions are not supported
                // in XML config. See SPR-12458 for details.
                if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
                    if (logger.isDebugEnabled()) {
                        logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
                                "] not matching: " + getReaderContext().getResource());
                    }
                    return;
                }
            }
        }

        //开始解析xml前预处理，目前默认实现无处理
        preProcessXml(root);
        //根据root节点解析xml，this.delegate是BeanDefinitionParserDelegate，最终实现解析操作的类
        parseBeanDefinitions(root, this.delegate);//↓↓↓↓↓
        //解析后置xml前预处理，目前默认实现无处理
        postProcessXml(root);

        this.delegate = parent;
    }

    //DefaultBeanDefinitionDocumentReader.java
    protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
        // 如果根节点使用默认命名空间，执行默认解析
        if (delegate.isDefaultNamespace(root)) {
            // 遍历子节点
            NodeList nl = root.getChildNodes();
            for (int i = 0; i < nl.getLength(); i++) {
                Node node = nl.item(i);
                if (node instanceof Element) {
                    Element ele = (Element) node;
                    // 如果该节点使用默认命名空间，执行默认解析
                    if (delegate.isDefaultNamespace(ele)) {
                        parseDefaultElement(ele, delegate);//↓↓↓↓↓
                    }
                    // 如果该节点非默认命名空间，执行自定义解析
                    else {
                        delegate.parseCustomElement(ele);
                    }
                }
            }
        }
        else {
            delegate.parseCustomElement(root);
        }
    }

    //DefaultBeanDefinitionDocumentReader.java
    private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
        // import标签解析
        if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
            importBeanDefinitionResource(ele);
        }
        // alias标签解析
        else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
            processAliasRegistration(ele);
        }
        // bean标签的解析
        else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
            processBeanDefinition(ele, delegate);//↓↓↓↓↓
        }
        // beans标签解析
        else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
            doRegisterBeanDefinitions(ele);
        }
    }

    //DefaultBeanDefinitionDocumentReader.java
    protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
        //解析xml文件
        BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
        if (bdHolder != null) {
            bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
            try {
                //注册解析得出的Beandefinition实例到Beanfactory
                BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());//↓↓↓↓↓
            }
            catch (BeanDefinitionStoreException ex) {
                getReaderContext().error("Failed to register bean definition with name '" +
                        bdHolder.getBeanName() + "'", ele, ex);
            }
            // Send registration event.
            getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
        }
    }

    //BeanDefinitionReaderUtils.java
    public static void registerBeanDefinition(
            BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
            throws BeanDefinitionStoreException {

        String beanName = definitionHolder.getBeanName();
        //注册Beandefinition
        registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());//↓↓↓↓↓

        // 注册Bean的别名
        String[] aliases = definitionHolder.getAliases();
        if (aliases != null) {
            for (String alias : aliases) {
                registry.registerAlias(beanName, alias);
            }
        }
    }

    //DefaultListableBeanFactory.java

    /** Map of bean definition objects, keyed by bean name. */
    private final Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<>(256);

    public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
            throws BeanDefinitionStoreException {

        Assert.hasText(beanName, "Bean name must not be empty");
        Assert.notNull(beanDefinition, "BeanDefinition must not be null");

        if (beanDefinition instanceof AbstractBeanDefinition) {
            try {
                ((AbstractBeanDefinition) beanDefinition).validate();
            }
            catch (BeanDefinitionValidationException ex) {
                throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
                        "Validation of bean definition failed", ex);
            }
        }

        BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
        if (existingDefinition != null) {
            if (!isAllowBeanDefinitionOverriding()) {
                throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
            }
            else if (existingDefinition.getRole() < beanDefinition.getRole()) {
                // e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
                if (logger.isInfoEnabled()) {
                    logger.info("Overriding user-defined bean definition for bean '" + beanName +
                            "' with a framework-generated bean definition: replacing [" +
                            existingDefinition + "] with [" + beanDefinition + "]");
                }
            }
            else if (!beanDefinition.equals(existingDefinition)) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Overriding bean definition for bean '" + beanName +
                            "' with a different definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            else {
                if (logger.isTraceEnabled()) {
                    logger.trace("Overriding bean definition for bean '" + beanName +
                            "' with an equivalent definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            //将BeanDefinition存储到DefaultListableBeanFactory中。
            this.beanDefinitionMap.put(beanName, beanDefinition);
        }
        else {
            if (hasBeanCreationStarted()) {
                // Cannot modify startup-time collection elements anymore (for stable iteration)
                synchronized (this.beanDefinitionMap) {
                    this.beanDefinitionMap.put(beanName, beanDefinition);
                    List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
                    updatedDefinitions.addAll(this.beanDefinitionNames);
                    updatedDefinitions.add(beanName);
                    this.beanDefinitionNames = updatedDefinitions;
                    removeManualSingletonName(beanName);
                }
            }
            else {
                // Still in startup registration phase
                this.beanDefinitionMap.put(beanName, beanDefinition);
                this.beanDefinitionNames.add(beanName);
                removeManualSingletonName(beanName);
            }
            this.frozenBeanDefinitionNames = null;
        }

        if (existingDefinition != null || containsSingleton(beanName)) {
            resetBeanDefinition(beanName);
        }
    }
